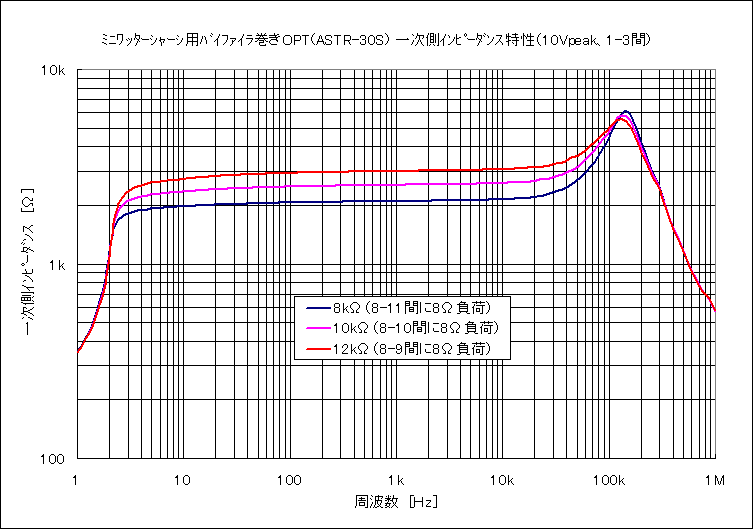

周波数シュウハスウ特性トクセイは試作シサク品ヒン（写真シャシン右ミギ）の測定ソクテイデータであり、これを保証ホショウするものではありません。
周波数シュウハスウ 8kΩ（8-11間カンに8Ω負荷フカ） 10kΩ（8-10間カンに8Ω負荷フカ） 12kΩ（8-9間カンに8Ω負荷フカ） 　 周波数シュウハスウ 8kΩ（8-11間カンに8Ω負荷フカ） 10kΩ（8-10間カンに8Ω負荷フカ） 12kΩ（8-9間カンに8Ω負荷フカ）
1 50.991299 50.913189 50.852608 　 1 354 351 349
1.1482 51.973251 51.87109 51.794186 　 1 397 392 389
1.3183 53.258625 53.121407 53.020618 　 1 460 453 448
1.5136 55.001057 54.809681 54.670753 　 2 562 550 541
1.7378 57.500546 57.215687 57.015427 　 2 750 726 709
1.9953 61.247269 60.906082 60.63121 　 2 1k 1k 1k
2.2909 64.050064 64.701431 65.102844 　 2 2k 2k 2k
2.6303 64.86438 65.985695 66.810806 　 3 2k 2k 2k
3.02 65.192131 66.488831 67.498032 　 3 2k 2k 2k
3.4674 65.373779 66.754845 67.850311 　 3 2k 2k 2k
3.9811 65.493057 66.924858 68.075523 　 4 2k 2k 3k
4.5709 65.582436 67.045967 68.233131 　 5 2k 2k 3k
5.2481 65.659546 67.140854 68.359329 　 5 2k 2k 3k
6.0256 65.724907 67.214836 68.463364 　 6 2k 2k 3k
6.9183 65.785858 67.276794 68.556755 　 7 2k 2k 3k
7.9433 65.840515 67.33535 68.636299 　 8 2k 2k 3k
9.1201 65.887138 67.393143 68.707703 　 9 2k 2k 3k
10.471 65.925026 67.447838 68.772789 　 10 2k 2k 3k
12.023 65.959145 67.50235 68.828613 　 12 2k 2k 3k
13.804 65.988586 67.548462 68.889107 　 14 2k 2k 3k
15.849 66.015259 67.585686 68.942596 　 16 2k 2k 3k
18.197 66.043152 67.616531 68.987923 　 18 2k 2k 3k
20.893 66.071083 67.652664 69.030396 　 21 2k 2k 3k
23.988 66.100822 67.685966 69.072777 　 24 2k 2k 3k
27.542 66.12307 67.718697 69.107857 　 28 2k 2k 3k
31.623 66.146423 67.745247 69.142395 　 32 2k 2k 3k
36.308 66.168571 67.775154 69.169998 　 36 2k 2k 3k
41.687 66.191338 67.800331 69.199417 　 42 2k 2k 3k
47.863 66.211136 67.825264 69.226357 　 48 2k 2k 3k
54.954 66.22953 67.848763 69.25164 　 55 2k 2k 3k
63.096 66.246078 67.867889 69.272263 　 63 2k 2k 3k
72.444 66.259682 67.886711 69.293083 　 72 2k 2k 3k
83.176 66.273232 67.904106 69.312775 　 83 2k 2k 3k
95.499 66.286674 67.919769 69.331146 　 95 2k 2k 3k
109.65 66.299316 67.936554 69.347328 　 110 2k 2k 3k
125.89 66.31189 67.952614 69.362839 　 126 2k 2k 3k
144.54 66.323647 67.967049 69.379707 　 145 2k 3k 3k
165.96 66.334282 67.980568 69.392723 　 166 2k 3k 3k
190.55 66.34478 67.993477 69.407219 　 191 2k 3k 3k
218.78 66.35582 68.006256 69.421204 　 219 2k 3k 3k
251.19 66.365761 68.019112 69.433342 　 251 2k 3k 3k
288.4 66.374687 68.03051 69.445076 　 288 2k 3k 3k
331.13 66.383316 68.041199 69.455688 　 331 2k 3k 3k
380.19 66.392311 68.051102 69.467209 　 380 2k 3k 3k
436.52 66.400276 68.06176 69.477043 　 437 2k 3k 3k
501.19 66.407967 68.071053 69.486023 　 501 2k 3k 3k
575.44 66.416122 68.080597 69.495056 　 575 2k 3k 3k
660.69 66.423492 68.089272 69.504471 　 661 2k 3k 3k
758.58 66.430481 68.098091 69.513542 　 759 2k 3k 3k
870.96 66.437325 68.106743 69.521736 　 871 2k 3k 3k
1000 66.444229 68.11544 69.529686 　 1k 2099.96 2545.49 2995.60
1148.2 66.450699 68.122887 69.538422 　 1k 2k 3k 3k
1318.3 66.457809 68.130791 69.54673 　 1k 2k 3k 3k
1513.6 66.464386 68.138458 69.555466 　 2k 2k 3k 3k
1737.8 66.470581 68.146225 69.563652 　 2k 2k 3k 3k
1995.3 66.477837 68.154503 69.572197 　 2k 2k 3k 3k
2290.9 66.485237 68.162445 69.58223 　 2k 2k 3k 3k
2630.3 66.493156 68.171432 69.592812 　 3k 2k 3k 3k
3020 66.500694 68.179932 69.602257 　 3k 2k 3k 3k
3467.4 66.508728 68.188416 69.61248 　 3k 2k 3k 3k
3981.1 66.51754 68.197441 69.623108 　 4k 2k 3k 3k
4570.9 66.526855 68.207268 69.63369 　 5k 2k 3k 3k
5248.1 66.537964 68.217987 69.644493 　 5k 2k 3k 3k
6025.6 66.550606 68.229759 69.65696 　 6k 2k 3k 3k
6918.3 66.565125 68.244064 69.670403 　 7k 2k 3k 3k
7943.3 66.583733 68.26078 69.684784 　 8k 2k 3k 3k
9120.1 66.6064 68.280472 69.702705 　 9k 2k 3k 3k
10471 66.633102 68.304871 69.724083 　 10k 2k 3k 3k
12023 66.666847 68.333977 69.748192 　 12k 2k 3k 3k
13804 66.710762 68.371864 69.780197 　 14k 2k 3k 3k
15849 66.766685 68.420784 69.821144 　 16k 2k 3k 3k
18197 66.840546 68.483665 69.87384 　 18k 2k 3k 3k
20893 66.935768 68.565971 69.942207 　 21k 2k 3k 3k
23988 67.059517 68.672882 70.031021 　 24k 2k 3k 3k
27542 67.218864 68.809677 70.144653 　 28k 2k 3k 3k
31623 67.423363 68.986298 70.290756 　 32k 2k 3k 3k
36308 67.684746 69.212204 70.476608 　 36k 2k 3k 3k
41687 68.01783 69.500641 70.714539 　 42k 3k 3k 3k
47863 68.441628 69.868263 71.015785 　 48k 3k 3k 4k
54954 68.969536 70.325508 71.388657 　 55k 3k 3k 4k
63096 69.651512 70.920563 71.876671 　 63k 3k 4k 4k
72444 70.479973 71.634384 72.44706 　 72k 3k 4k 4k
83176 71.474831 72.47187 73.09108 　 83k 4k 4k 5k
95499 72.566826 73.333092 73.697578 　 95k 4k 5k 5k
109648 73.896606 74.368935 74.434448 　 110k 5k 5k 5k
125893 75.110771 75.13076 74.830238 　 126k 6k 6k 6k
144544 75.63588 75.191093 74.617241 　 145k 6k 6k 5k
165959 75.003632 74.350067 73.717499 　 166k 6k 5k 5k
190546 73.413666 72.830147 72.301498 　 191k 5k 4k 4k
218776 71.429268 71.00338 70.620163 　 219k 4k 4k 3k
251189 69.7649 69.487335 69.2136 　 251k 3k 3k 3k
288403 68.309677 68.164841 67.942261 　 288k 3k 3k 2k
331131 66.342194 66.277107 66.099495 　 331k 2k 2k 2k
380189 64.516586 64.506378 64.357079 　 380k 2k 2k 2k
436516 62.855537 62.888 62.753498 　 437k 1k 1k 1k
501187 61.300129 61.369572 61.238705 　 501k 1k 1k 1k
575440 59.7892 59.896111 59.756409 　 575k 976 988 972
660693 58.316345 58.47084 58.29195 　 661k 824 839 821
758578 57.227852 57.320988 57.191971 　 759k 727 735 724
870964 56.431942 56.338444 56.436268 　 871k 663 656 663
1E+06 55.207924 55.139038 55.239471 　 1M 576 571 578
