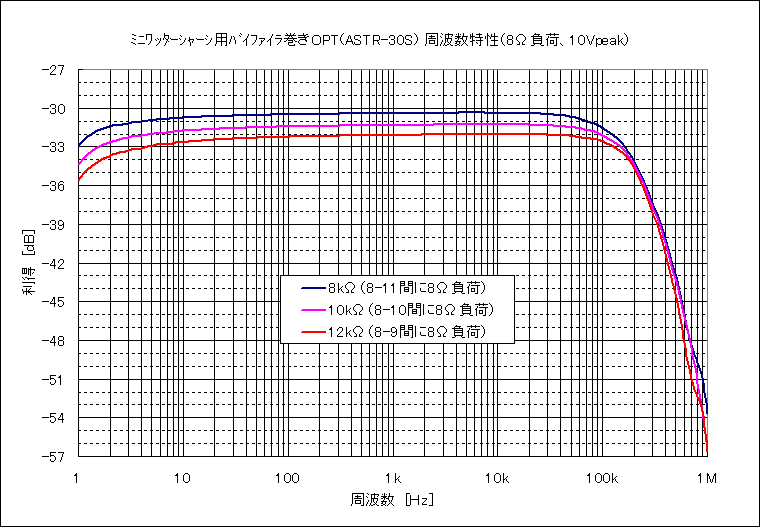

| 周波数特性は試作品（写真右）の測定データであり、これを保証するものではありません。 | |||||||
|
|
|||||||
| 利得 [ｄB] | |||||||
| 周波数 [Hz] |
周波数 [Hz] |
8kΩ（8-11間に8Ω負荷） | 10kΩ（8-10間に8Ω負荷） | 12kΩ（8-9間に8Ω負荷） | |||
| 1 | 1 | -32.982712 | -34.376568 | -35.593964 | |||
| 1.1482 | 1 | -32.425343 | -33.797016 | -35.001339 | |||
| 1.3183 | 1 | -32.027836 | -33.359886 | -34.537296 | |||
| 1.5136 | 2 | -31.756947 | -33.043392 | -34.185318 | |||
| 1.7378 | 2 | -31.568451 | -32.812851 | -33.918011 | |||
| 1.9953 | 2 | -31.42977 | -32.638737 | -33.709881 | |||
| 2.2909 | 2 | -31.322216 | -32.500648 | -33.543182 | |||
| 2.6303 | 3 | -31.234735 | -32.386578 | -33.405228 | |||
| 3.02 | 3 | -31.15999 | -32.289299 | -33.285545 | |||
| 3.4674 | 3 | -31.095854 | -32.203976 | -33.179859 | |||
| 3.9811 | 4 | -31.038549 | -32.127712 | -33.086449 | |||
| 4.5709 | 5 | -30.986996 | -32.058605 | -33.000538 | |||
| 5.2481 | 5 | -30.939447 | -31.996189 | -32.922749 | |||
| 6.0256 | 6 | -30.89596 | -31.939936 | -32.852108 | |||
| 6.9183 | 7 | -30.855862 | -31.889082 | -32.788528 | |||
| 7.9433 | 8 | -30.818678 | -31.843512 | -32.731754 | |||
| 9.1201 | 9 | -30.784904 | -31.802113 | -32.680428 | |||
| 10.4713 | 10 | -30.754974 | -31.763231 | -32.633457 | |||
| 12.0226 | 12 | -30.728123 | -31.725878 | -32.587925 | |||
| 13.8038 | 14 | -30.70216 | -31.691936 | -32.545666 | |||
| 15.8489 | 16 | -30.677141 | -31.664307 | -32.510239 | |||
| 18.197 | 18 | -30.657003 | -31.639412 | -32.480709 | |||
| 20.893 | 21 | -30.640026 | -31.613214 | -32.449364 | |||
| 23.9883 | 24 | -30.621048 | -31.591553 | -32.421749 | |||
| 27.5423 | 28 | -30.605106 | -31.570766 | -32.397316 | |||
| 31.6228 | 32 | -30.589516 | -31.553648 | -32.375202 | |||
| 36.3078 | 36 | -30.577648 | -31.537067 | -32.355881 | |||
| 41.6869 | 42 | -30.563875 | -31.519876 | -32.334274 | |||
| 47.863 | 48 | -30.551401 | -31.504856 | -32.315453 | |||
| 54.9541 | 55 | -30.540642 | -31.491329 | -32.298767 | |||
| 63.0957 | 63 | -30.530195 | -31.47908 | -32.283451 | |||
| 72.4436 | 72 | -30.521139 | -31.467657 | -32.269413 | |||
| 83.1764 | 83 | -30.512428 | -31.456661 | -32.255898 | |||
| 95.4993 | 95 | -30.504263 | -31.446091 | -32.242649 | |||
| 109.6478 | 110 | -30.496262 | -31.436447 | -32.230644 | |||
| 125.8925 | 126 | -30.488792 | -31.427065 | -32.218876 | |||
| 144.544 | 145 | -30.481623 | -31.418207 | -32.207542 | |||
| 165.9587 | 166 | -30.474886 | -31.410162 | -32.197243 | |||
| 190.5461 | 191 | -30.468727 | -31.401922 | -32.187305 | |||
| 218.7762 | 219 | -30.462725 | -31.394438 | -32.177917 | |||
| 251.1886 | 251 | -30.45685 | -31.387438 | -32.168842 | |||
| 288.4032 | 288 | -30.451952 | -31.380793 | -32.160328 | |||
| 331.1311 | 331 | -30.44718 | -31.374489 | -32.152397 | |||
| 380.1894 | 380 | -30.442736 | -31.368883 | -32.14468 | |||
| 436.5158 | 437 | -30.438499 | -31.36305 | -32.137527 | |||
| 501.1872 | 501 | -30.434441 | -31.357742 | -32.130535 | |||
| 575.4399 | 575 | -30.430237 | -31.352468 | -32.123837 | |||
| 660.6934 | 661 | -30.4265 | -31.347189 | -32.117229 | |||
| 758.5776 | 759 | -30.422535 | -31.342283 | -32.110794 | |||
| 870.9636 | 871 | -30.418932 | -31.337633 | -32.10482 | |||
| 1000 | 1k | -30.415201 | -31.332794 | -32.098984 | |||
| 1148.154 | 1k | -30.411243 | -31.328268 | -32.093224 | |||
| 1318.257 | 1k | -30.407381 | -31.323902 | -32.088295 | |||
| 1513.561 | 2k | -30.403147 | -31.319319 | -32.083149 | |||
| 1737.801 | 2k | -30.398739 | -31.314726 | -32.078037 | |||
| 1995.262 | 2k | -30.394363 | -31.309484 | -32.073334 | |||
| 2290.868 | 2k | -30.38982 | -31.304428 | -32.068909 | |||
| 2630.268 | 3k | -30.385685 | -31.300188 | -32.064526 | |||
| 3019.952 | 3k | -30.380508 | -31.294847 | -32.05917 | |||
| 3467.369 | 3k | -30.376757 | -31.290628 | -32.055389 | |||
| 3981.072 | 4k | -30.373846 | -31.287632 | -32.051834 | |||
| 4570.882 | 5k | -30.371792 | -31.28491 | -32.048698 | |||
| 5248.075 | 5k | -30.371021 | -31.282778 | -32.046021 | |||
| 6025.596 | 6k | -30.37101 | -31.281727 | -32.04401 | |||
| 6918.31 | 7k | -30.371471 | -31.28154 | -32.042507 | |||
| 7943.282 | 8k | -30.373085 | -31.281883 | -32.041397 | |||
| 9120.108 | 9k | -30.375319 | -31.283205 | -32.041336 | |||
| 10471.29 | 10k | -30.378683 | -31.284796 | -32.041641 | |||
| 12022.64 | 12k | -30.382435 | -31.286617 | -32.042027 | |||
| 13803.84 | 14k | -30.388081 | -31.289848 | -32.043598 | |||
| 15848.93 | 16k | -30.396036 | -31.295143 | -32.046638 | |||
| 18197.01 | 18k | -30.406685 | -31.301979 | -32.050694 | |||
| 20892.96 | 21k | -30.421141 | -31.311563 | -32.056671 | |||
| 23988.33 | 24k | -30.4403 | -31.324862 | -32.065105 | |||
| 27542.29 | 28k | -30.464581 | -31.341433 | -32.075771 | |||
| 31622.78 | 32k | -30.495155 | -31.362133 | -32.088566 | |||
| 36307.81 | 36k | -30.533951 | -31.387983 | -32.104885 | |||
| 41686.94 | 42k | -30.58403 | -31.421745 | -32.125614 | |||
| 47863.01 | 48k | -30.648159 | -31.464518 | -32.152184 | |||
| 54954.09 | 55k | -30.736126 | -31.525238 | -32.192291 | |||
| 63095.73 | 63k | -30.850168 | -31.60511 | -32.24601 | |||
| 72443.6 | 72k | -30.996199 | -31.70886 | -32.31702 | |||
| 83176.38 | 83k | -31.18079 | -31.842863 | -32.41053 | |||
| 95499.26 | 95k | -31.415264 | -32.01704 | -32.536968 | |||
| 109647.8 | 110k | -31.714939 | -32.248516 | -32.71413 | |||
| 125892.5 | 126k | -32.085358 | -32.543682 | -32.949718 | |||
| 144544 | 145k | -32.536137 | -32.914318 | -33.257721 | |||
| 165958.7 | 166k | -33.07386 | -33.368938 | -33.643612 | |||
| 190546.1 | 191k | -33.855206 | -34.136292 | -34.381905 | |||
| 218776.2 | 219k | -34.732651 | -34.990574 | -35.267006 | |||
| 251188.6 | 251k | -35.740715 | -36.010071 | -36.347187 | |||
| 288403.2 | 288k | -36.897919 | -37.196552 | -37.638126 | |||
| 331131.1 | 331k | -38.12701 | -38.472885 | -39.048462 | |||
| 380189.4 | 380k | -39.535744 | -39.919212 | -40.664639 | |||
| 436515.8 | 437k | -41.165524 | -41.572071 | -42.532875 | |||
| 501187.2 | 501k | -43.054119 | -43.441322 | -44.682827 | |||
| 575439.9 | 575k | -45.228481 | -45.503647 | -47.142006 | |||
| 660693.4 | 661k | -47.48595 | -47.470306 | -49.850655 | |||
| 758577.6 | 759k | -49.120922 | -49.777428 | -51.792721 | |||
| 870963.6 | 871k | -50.597168 | -52.996113 | -53.114952 | |||
| 1000000 | 1M | -53.665703 | -56.482361 | -56.610992 | |||
